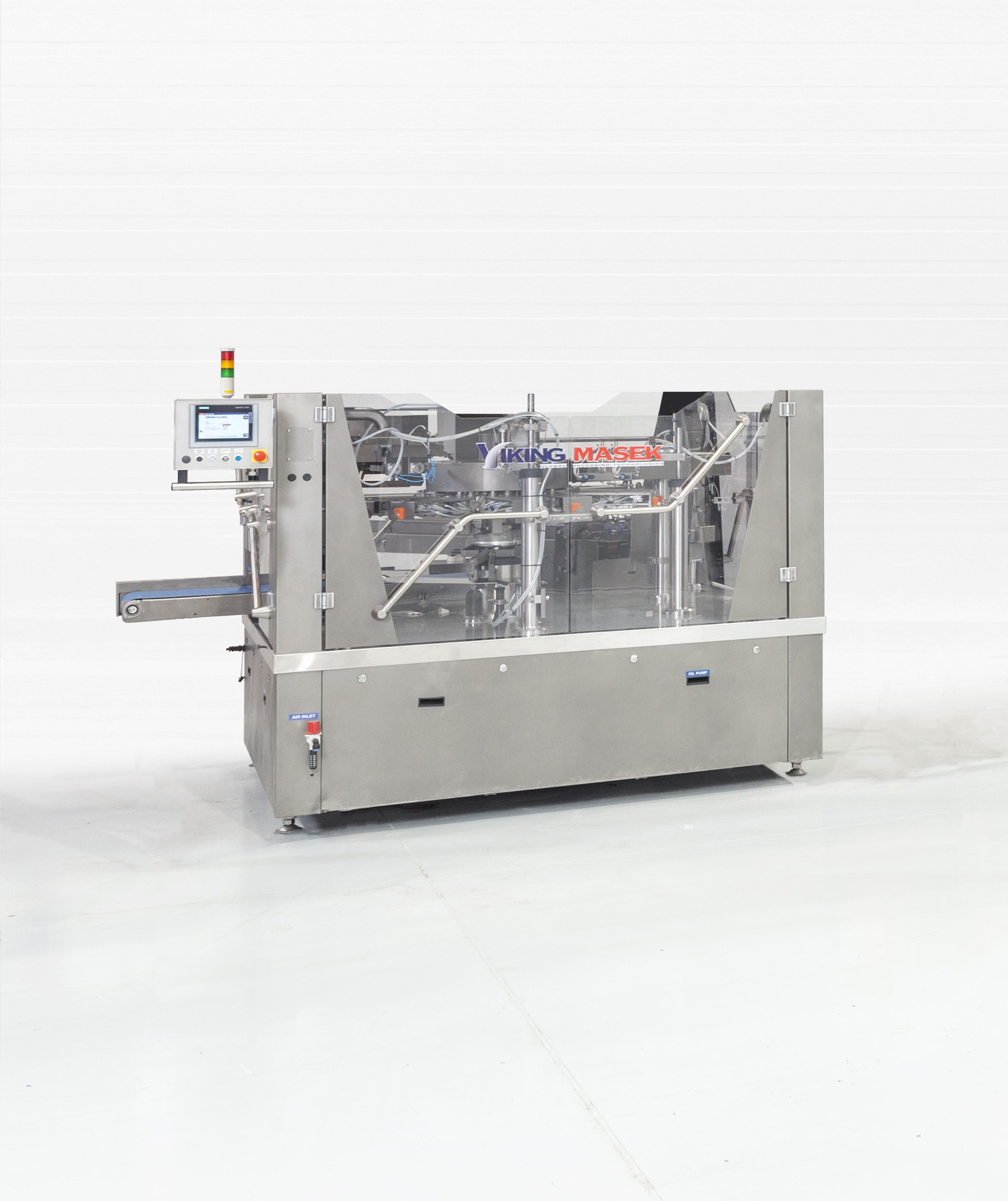

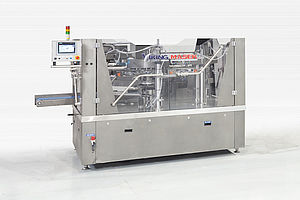

Rotary Pre-Made Bag Machine PM235 S

Our most popular simplex premade pouch filling and sealing machine for bags up to 235 mm wide at speeds up to 50 cycles per minute.

Speed
max. 50 cycles/min
Bag size
max. 235 x 320 mm
min. 90 x 40 mm

Machine features

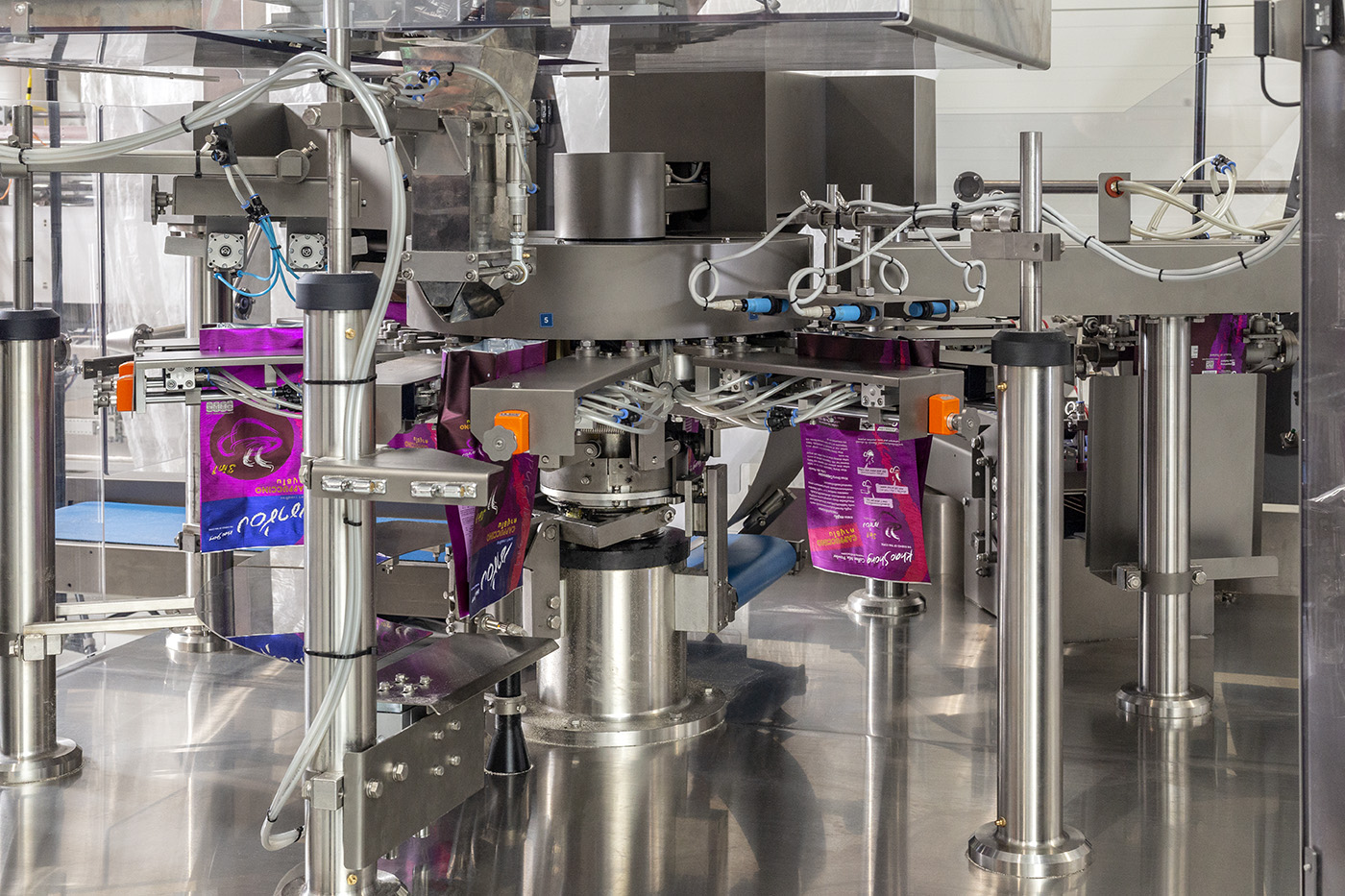

  • 8 stations, single bag
  • PLC control with touch screen operation
  • Servo-driven Allen Bradley control platform
  • Highly durable welded steel frame
  • Production parameter memory including gripper size, machine speed, sealing temperature, and filling volume
  • Pouch presence detection – no filling, no sealing
  • Bag deflation with wire guide or push bars
  • Automatic deoxidizer feeding station
  • Two step sealing process guarantees clean sealing
  • Cooling station for liquid products

    •



  • Product filling – can be integrated with multi-head scales, volumetric fillers and auger fillers
  • Fully interlocked safety guards
  • Presealing station for liquid or paste
  • Zipper opening device
  • Clean-in-place design
  • Long raised rotary shaft extender for longer bags

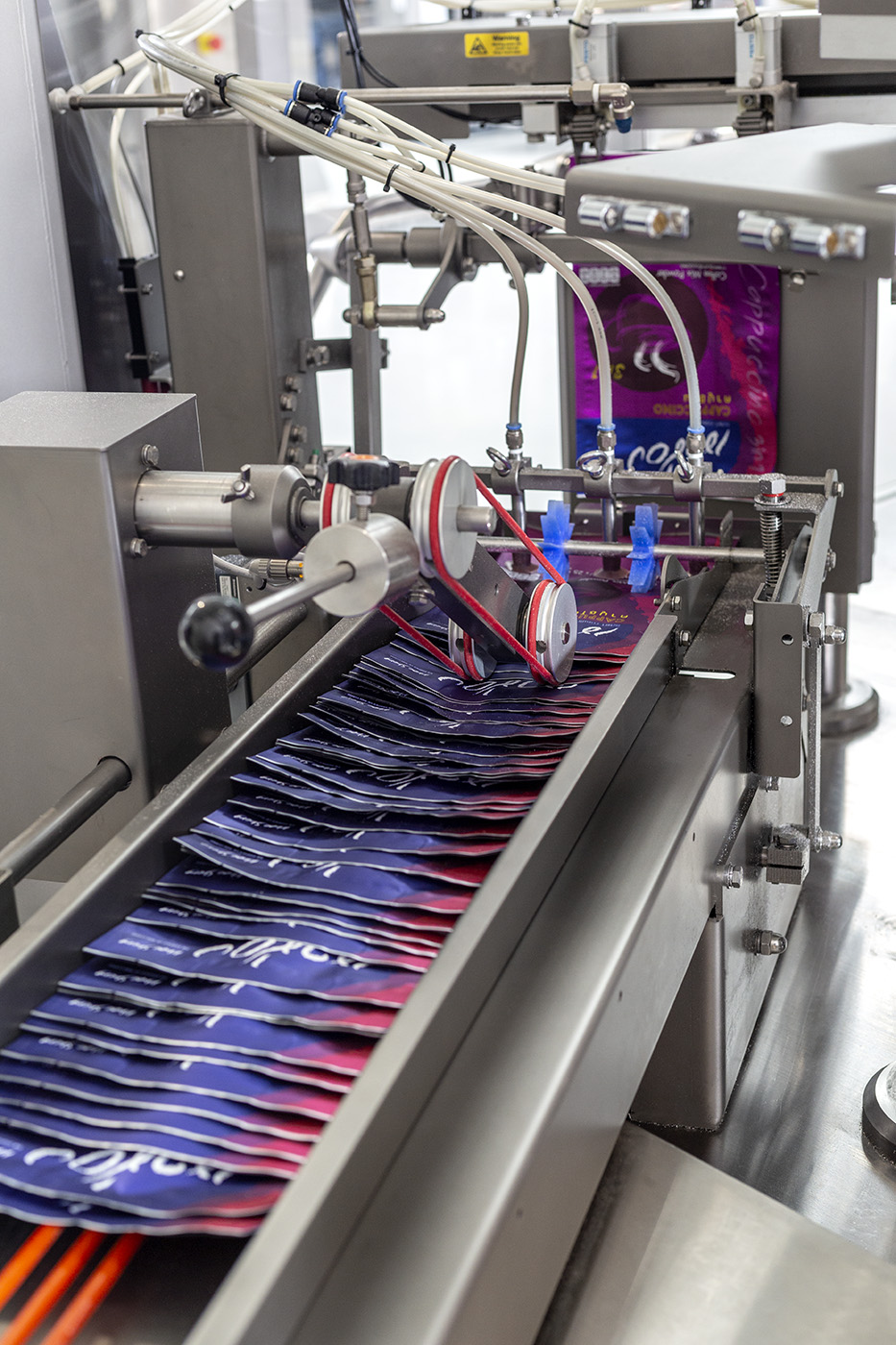

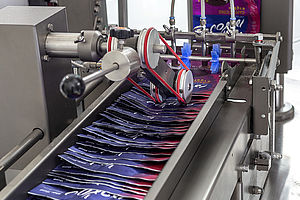

  • Extended bag magazine
  • Date coding: emboss, hot stamp, inkjet or thermal transfer
  • Quality control: checkweigher, metal detector, X-ray inspection
  • Dust suction nozzles and dust collector
  • Product settler
  • Bag supporter for heavy fills
  • Ethernet connectivity
  • Washdown structure (IP65 or IP66)
  • Steam or gas flush
  • Rotary running clockwise model
  • Bag rejection system
  • Stand-up discharge

    •

  • Max. speed: 50
  • Bag size max.: 235 x 320
  • Bag size min.: 90 x 40
